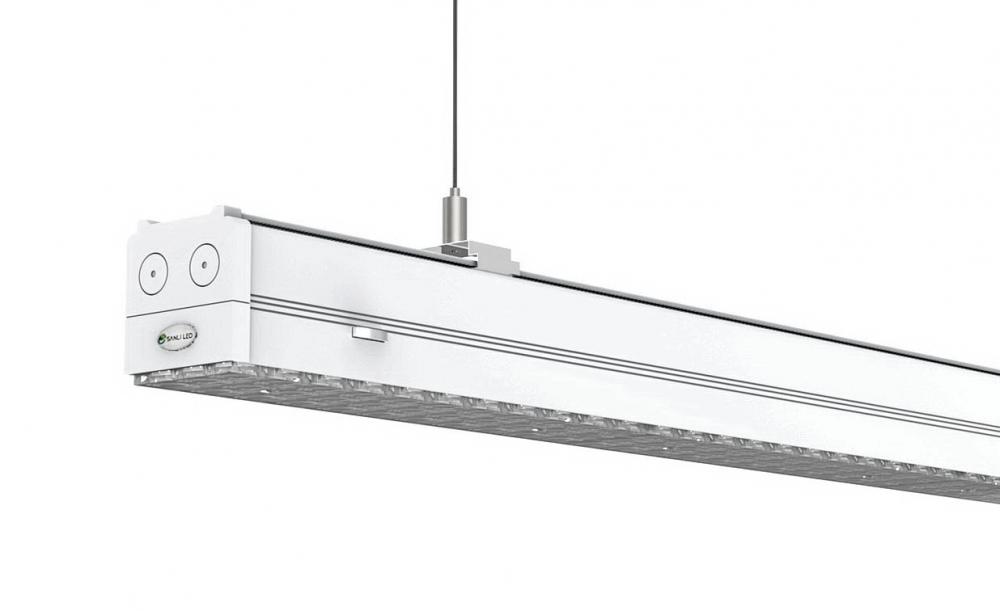

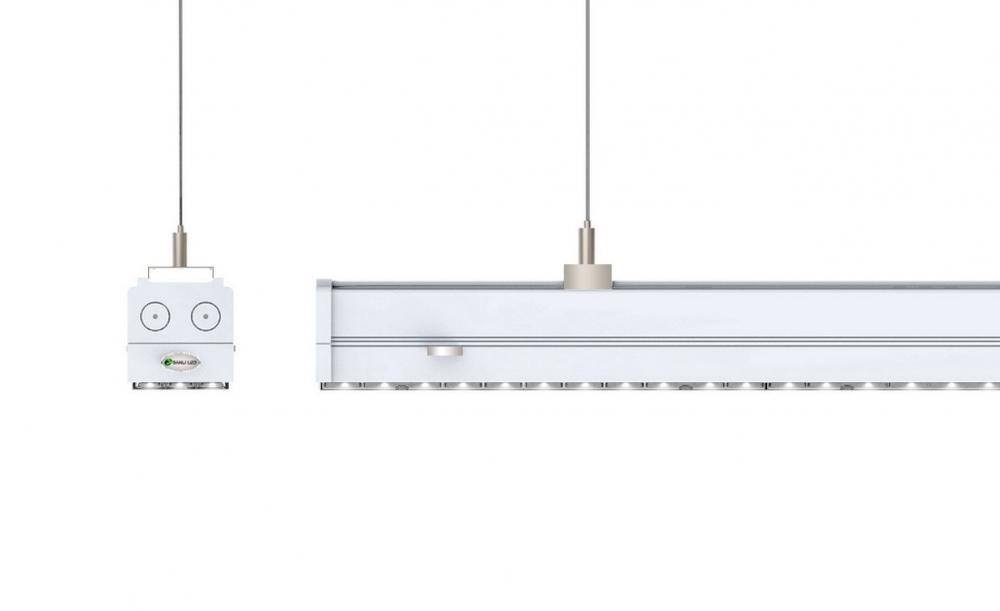

Best Supermarket lighting solutions: Continuous Row LED Linear Trunking System. It is mainly composed by these mountings: Various degree lens linear illuminator bars, different length trunking rails and installation Accessories.(suspension & surface mounted ways).
Main Features for 1.5M 70W 4000K Double Asymmetric Linear Supermarket LED Lighting Fixtures.
Lumen efficiency: >130lm/W
Protection rating: IP44
Temperature range: -30°C – +40°C
Service life: up to 50,000 h (L80)
Pre-mounted 5 wires/7 wires/11 wires

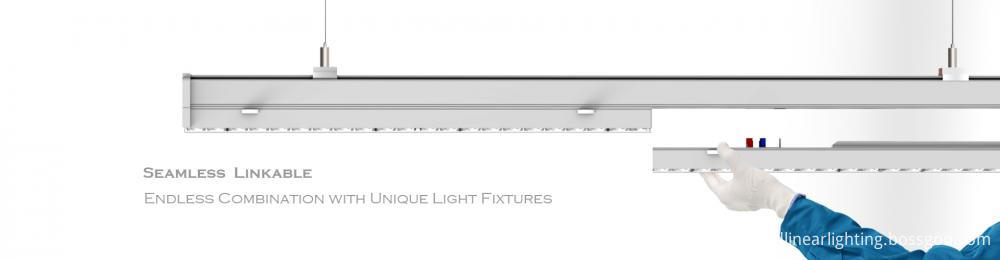

Continuous seamless linkable without any gap

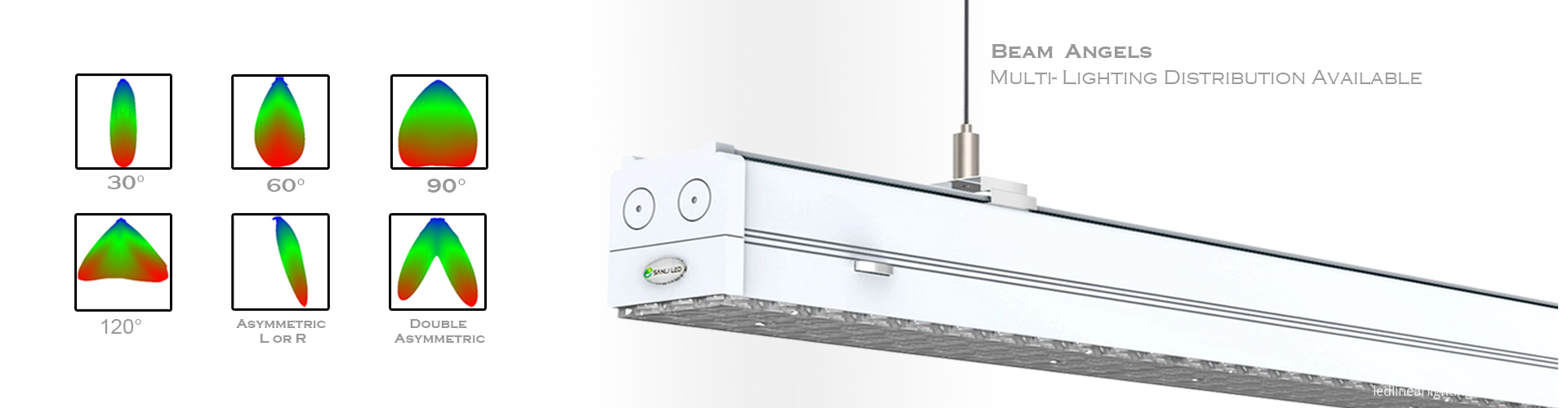

Sharp/ Narrow/ Wide/ Flat/ Asymmetric/ Double Asymmetric degrees optional
Famous brand materials are used: PHILIPS XITANIUM Drivers & LG G5 5630 chips
Housing of strong 6063 aluminum alloy, with black, white and silver finish color for selection

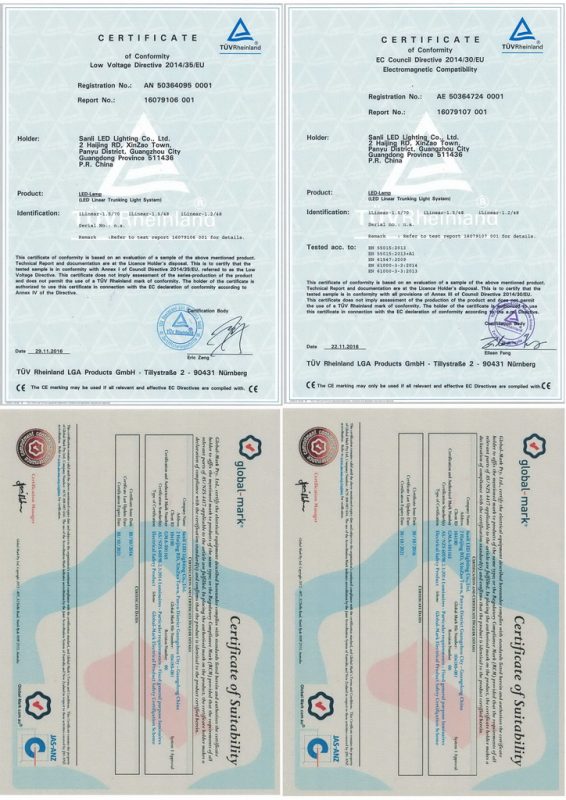

Certifications for Best Supermarket lighting solutions: Continuous Row LED Linear Trunking System
SAA No: GMA-501165. Issued by Australia Global Mark Pty Ltd.
CE- EMC No: AE 50364724 0001, CE- LVD No: AN50364095 0001. Issued by Germany TUV Rheinland.
Luminaire Dimension:
Length
L (mm)
W(mm)
H(mm)
Wt(kg)
Qty/CTN
1.2m
1150
65
30
2
5
1.5m
1450
65
30
2.5
5
Luminaire Parameter:
Length
Power
LEDs
Lumen
CRI
UGR
Optional
1.2m
48W
132pcs
5200lm
>80/>95
<16
Dimming/Emergency/Motion Sensor
1.5m
48W
165pcs
5400lm
>80/>95
<16
Dimming/Emergency/Motion Sensor
70W
165pcs
9100lm
>80/>95
<16
Dimming/Emergency/Motion Sensor
Benefits from Best Supermarket lighting solutions: Continuous Row LED Linear Trunking System
Tools free Installation
Saving installation time and labor cost
IES files are available and DIALUX design service
DALI or 1-10V Dimmable, Emergency and Sensor lighting optional
Trust & Reliable . TUV-CE, SAA certificated
7 Years Quality Warranty
Applications for Best Supermarket lighting solutions: Continuous Row LED Linear Trunking System
Industrial & Commercial Lighting Places. for example: Supermarkets, Hypermarkets, Shopping malls, Warehouses, Workshops, Exhibition Center, Factory.
How To Place Orders for Best Supermarket lighting solutions: Continuous Row LED Linear Trunking System ?
-
Please contact with our sales person and send inquiry.
-
We supply the quotation and products suggestion based on your requests.
-
Confirming the samples and check the quality and sign contract for official orders.
-
Received the deposit and arranged the production.
-
Inspection or we take photos for your checking. Then, pay for the balance payment.
-
Shipping by SEA or AIR based on the EXW, or FOB Guangzhou, Hong Kong.
